Top Performance for Maximum Power

The Power Boost for your Solar Panels

Q Cells developed Q.ANTUM Technology to maximize the efficiency of conventional solar panels. Q Cells guarantee high performances under real conditions, in winter or summer and under clear or cloudy skies. Solar panels with the Q.ANTUM Technology achieve maximum efficiencies from mass production, which has been independently confirmed, with a world record 19.5 %, by the independent Fraunhofer Institute for Solar Energy Systems ISE.

Q Cells Solar Solutions

The return on your solar system depends on the efficiency and quality of your components such as your solar panels. This is a good reason to trust in the technology of Q CELLS. We rely on German engineering, intensive research and strict quality control for all our solar products. And: We provide tailored solutions. Only in that case we can develop a photovoltaic solution that guarantees the highest yields matching your individual needs.

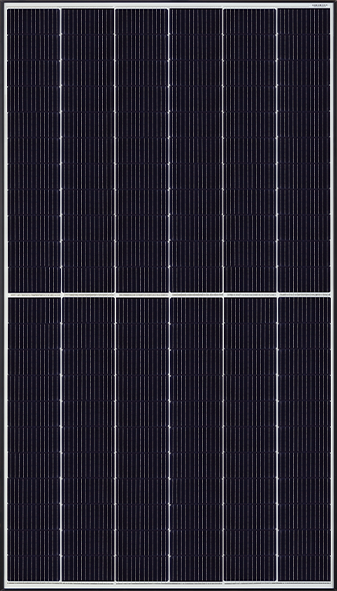

Q.PEAK DUO ML-G9

HIGH DENSITY MODULE TO MAXIMIZE PERFORMANCE

Nominal Power

370 - 390 Wp

Efficiency

Up to 20.8 %

Maximum System Voltage

1000 V

Wind/Snow Load

4000 / 5400

Format

1840 mm × 1030 mm × 32 mm (including frame)

Weight

19.9 kg

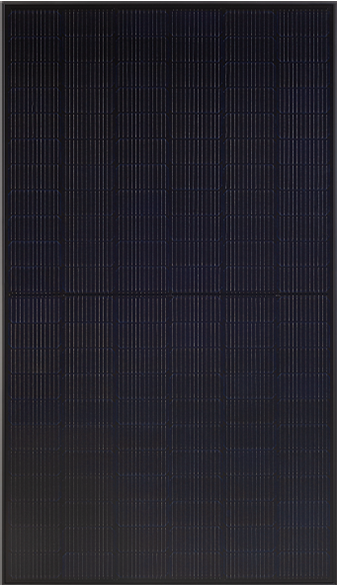

Q.PEAK DUO BLK ML-G9

ENDLESS IMPROVEMENT OF AESTHETICS AND PERFORMANCE

Nominal Power

365 - 385 Wp

Efficiency

Up to 20.4 %

Maximum System Voltage

1000 V

Wind/Snow Load

4000 / 5400

Format

1840 mm × 1030 mm × 32 mm (including frame)

Weight

19.9 kg

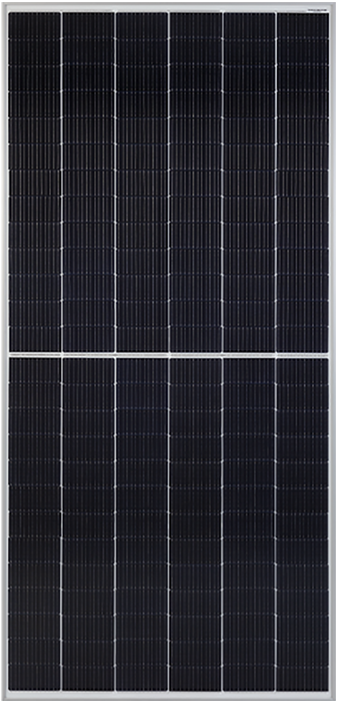

Q.PEAK DUO XL-G9

HIGH DENSITY MODULE TO MAXIMIZE PERFORMANCE

Nominal Power

440 - 460 Wp

Efficiency

Up to 20.9 %

Maximum System Voltage

1000 (IEC) / 1000 (UL)

Wind/Snow Load

2400 / 5400

Format

2163 mm × 1030 mm × 35 mm (including frame)

Weight

25.5 kg

ALL BENEFITS OF YOUR Q.PEAK DUO ML-G9 SOLAR PANEL

BREAKING THE 20 % EFFICIENCY BARRIER

Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 20.8 %

INNOVATIVE ALL WEATHER TECHNOLOGY

Optimal yields, whatever the weather with excellent low-light and temperature behaviour.

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID Technology, Anti PID Technology¹, Hot-Spot Protect and Traceable Quality Tra.Q™.

EXTREME WEATHER RATING

High-tech aluminium alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).

A RELIABLE INVESTMENT

Inclusive 12-year product warranty and 25-year linear performance warranty².

STATE OF THE ART MODULE TECHNOLOGY

Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.

APT test conditions according to IEC/TS 62804-1:2015, method B (−1500 V, 168 h)
See data sheet on rear for further information.
